Handheld Dual-Frequency GNSS receiver Walker RTK L1/L2

The Walker RTK with geometer mobile app is a compact and easy-to-use ideal tool for 3D surveying manholes, sidewalks, curbs, steps, landscaping, mapping trenches, and underground utilities such as electricity, gas, water, and sewer lines. It is ideal tool for precision farming as well.

Walker RTK is a dual-frequency GNSS receiver (L1, L2) for high-precision coordinate surveying in RTK (Real Time Kinematic) mode.

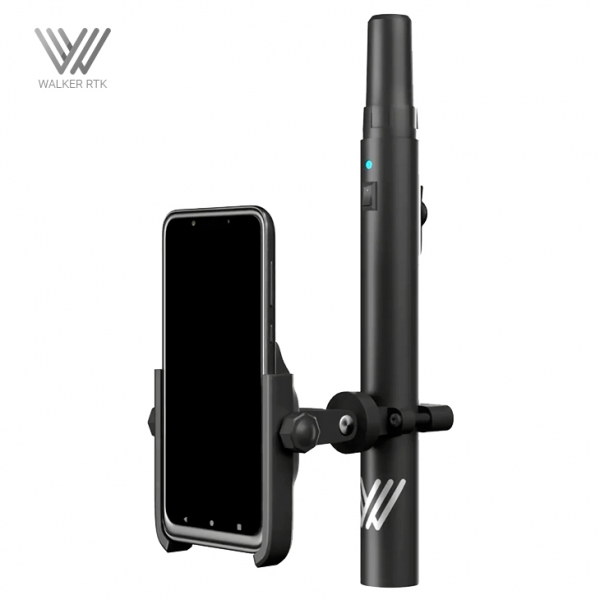

The package includes the Walker RTK GNSS receiver, Helical antenna, bracket for attaching a smartphone to the receiver, geometer SCOUT mobile app, carton box packaging, or optional transportation case.

A Helical antenna is suitable for 90% of tasks, but if desired, you can connect a classic geodesic antenna through the SMA connector. If necessary, the receiver can be attached to milestones and used as a classic surveying RTK receiver. The receiver has a standardized 5/8" thread that fits virtually all accessories (milestones, tripods, etc.).

The Walker RTK GNSS receiver housing is made of a rugged aluminum alloy with a special coating. This makes the device highly resistant to shock and protects it from mechanical damage.

The Walker RTK is suitable for a variety of applications where high coordinate accuracy is required. Thanks to its lightweight design, weighing only 250 grams, and its compact design, the Walker RTK GNSS receiver is easier to use than classic survey receivers. It is quickly ready to use and requires no special and time-consuming setups. Simply turn it on via the power button and the receiver starts up automatically.

Walker RTK can track and determine geo-positioning by signals from all existing satellite systems. This allows for centimeter-level accuracy of the RTK solution within seconds.

GNSS signals processed by the Walker RTK GNSS receiver:

• GPS (L1C/A, L2C)
• GLONASS (L1OF, L2OF)
• GALILEO (E1B/C, E5b)
• BEIDOU (B1I, B2I)
• QZSS (L1C/A, L1S, L2C)
• SBAS (L1C/A)

The Walker RTK GNSS receiver is designed on a new energy-efficient architecture. It has a built-in rechargeable battery and provides 24 hours of continuous operation without recharging.

Thanks to outgoing NMEA messages, the Walker RTK GNSS receiver is fully compatible with any geolocation software, providing high accuracy and reliable RTK-corrected positioning.

Included with:

• GNSS receiver Walker RTK
• Helical antenna

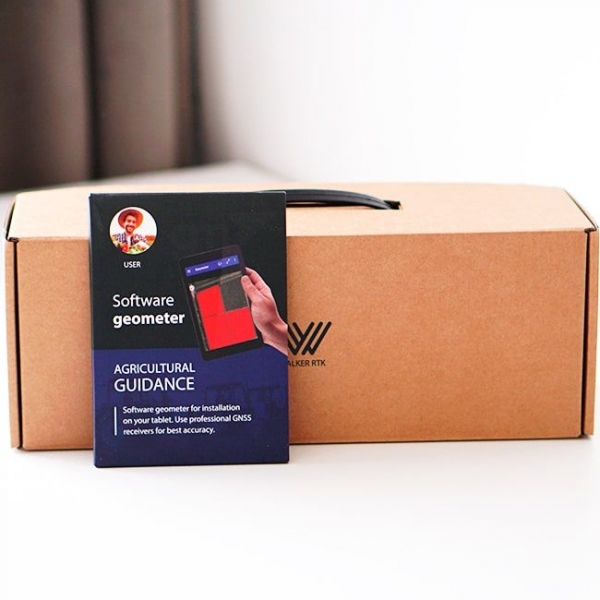

• Software Geometer SCOUT
• Mount is metal for a smartphone.
• Cardboard package (standard)
• Storage and transport case (optional)

Dual frequency GNSS receiver applications Walker RTK:

• Geodesy and land surveying
• Diverse GIS systems
• Construction support
• Moving object management
• Forestry
• Landscape design
• Municipal Management
• Precision Farming

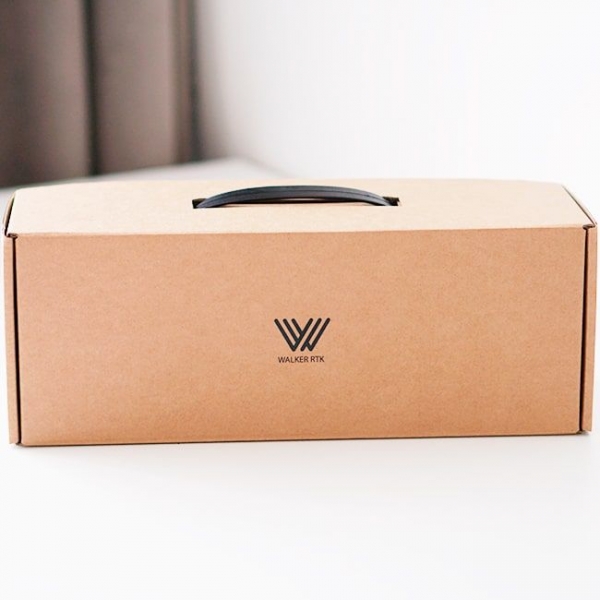

Carton box packaging: 330*120*110 mm. The kit does not include a smartphone.
