GNSS kit for measuring field area GeoMeter SCOUT GM Spike

Brand: geometer
Article: SCSP
Rating:
5.0
Availability:
In stock
Quantity:
+
16 016 грн
Shipping methods

Airmail with tracking

Other transport services

Express shipping

Pickup

Payment methods

PayPal

Bank account payment

Privatbank

Liqpay

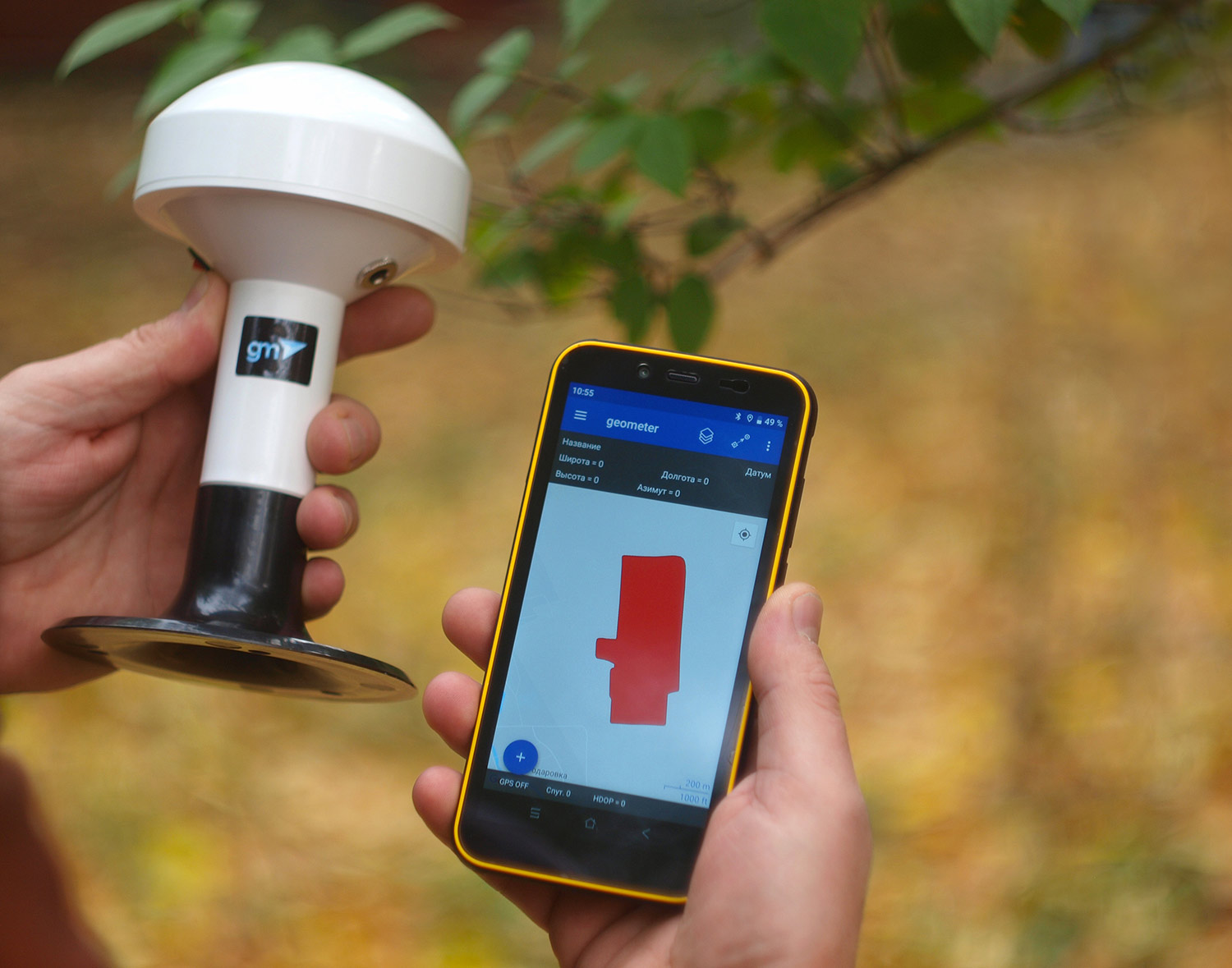

The kit consisting of a ruggedized smartphone BV6300/BV6300 PRO with the installed geometer SCOUT mobile application with an external GNSS GM Spike receiver is the most optimal kit for measuring field areas, distances and setting points. An external GM SPIKE receiver is used to improve the sensitivity and quality of the GPS signal.

Product page: gm-scout.com

The GeoMeter SCOUT GM Spike kit opens up completely new opportunities for agronomists when measuring the area of ​agricultural fields. An extremely secure device with new unique functions will allow each agronomist, manager or accountant to perform their work more efficiently and efficiently.

Extremely Rugged Smartphone BV6300/BV6300 PRO has a protected housing according to the industrial standard IP68 and according to the military standard MIL-STD-810G. The fully sealed device is made using the latest technologies. The metal body is covered with an industrial rubber layer, which softens the impacts of the device during falls. 3rd generation Gorilla Glass hardened glass with "innate damage resistance" technology. It is possible to attach the GM Spike receiver to the roof of the car using neodymium magnet.

GeoMeter SCOUT has completely new software with new features. With the GNSS kit GeoMeter SCOUT GM Spike, you get faster and more accurate positioning on the ground, accurate measurement of area, length, three-dimensional measurement, location of points on the ground, keeping coordinates, entering your coordinates, digitizing gardens and other objects, special markings on the ground, cutting sections, embedding new objects.

NEW FUNCTIONS

- Demarcation (+GM PRO or GM PRO RTK)
- Measurement of small areas (+GM PRO or GM PRO RTK)
- Binding Points to Terrain (+GM PRO or GM PRO RTK)
- Exit to point (+GM PRO or GM PRO RTK)
- Create a field map
- Instant display on maps Google
- Count the number of hounds when working with wide-сutting equipment
- Connect additional devices via Bluetooth
- Working with the Soil density meter
- Separation of fields
Cutting plots

- Field marking
- Planning of circular irrigation systems
- Area Definition
- Determining Distances
- Synchronization with Agroprofile

CHARACTERISTICS GM SPIKE RECEIVER
Case: protected from dust and moisture.
Receiver type: GNSS (GPS, GLONASS, GALILEO, BEIDOU)
GPS receiver: Single-frequency, L1.
Bluetooth: yes, version 4.2.
Number of channels: 56
Frequency: 1 Hz, 2 Hz, 4 Hz, 5 Hz, 10 Hz
Weight: 0.3 kg
Diameter: 110 mm
Height: 180 mm
Connector type: USB - 5.5x2.1
Battery: Li-ion, up to 24 hours of operation
Mount: neodymium magnet.

KITS OF SUPPLY:

1. GeoMeter SCOUT GM Spike BV6300 (3/32 Gb)

  • Rugged smartphone BV6300, RAM: 3 GB, internal memory: 32 GB;
  • Geometer SCOUT software (installed);
  • GM Spike receiver with built-in battery;

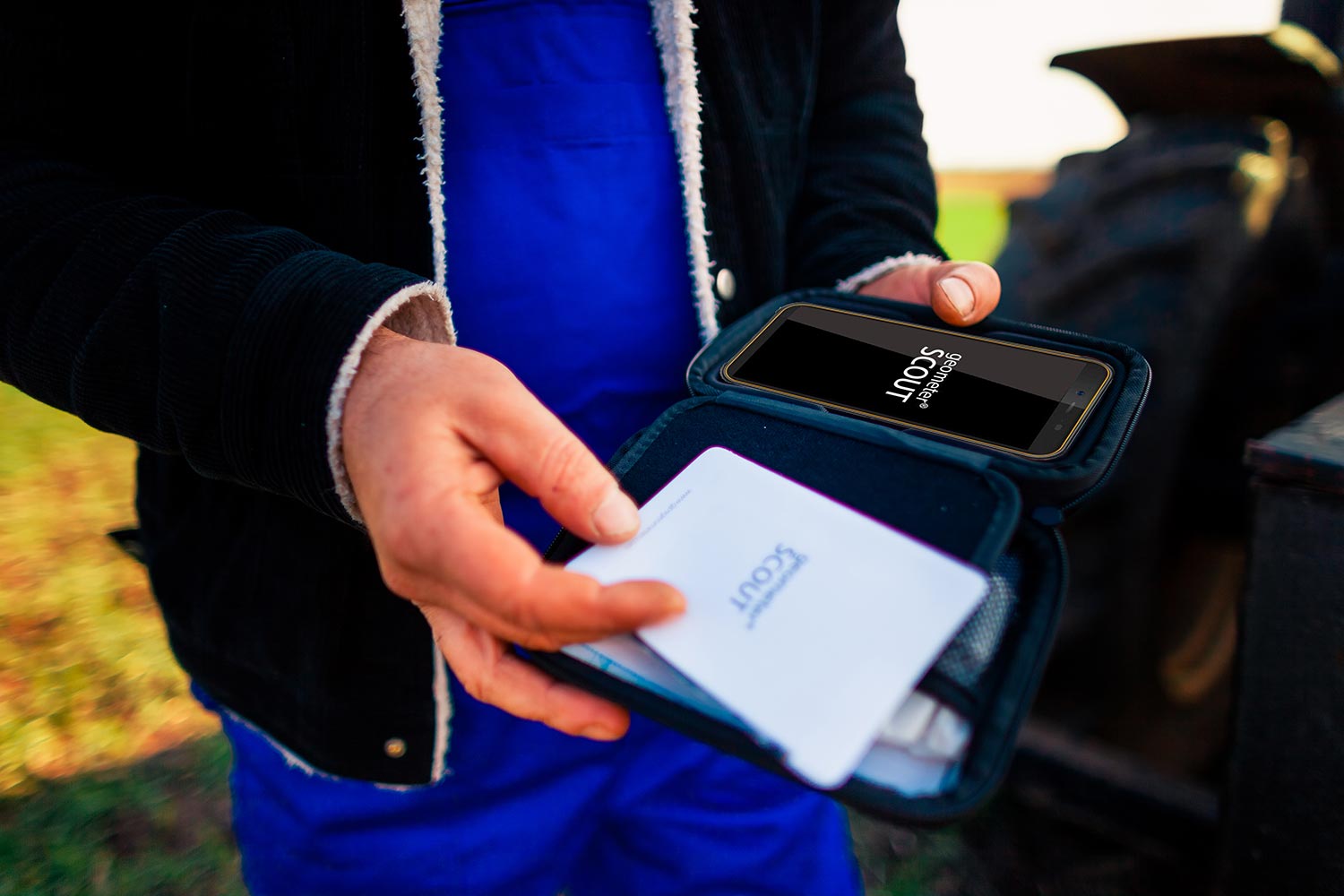

  • Protective box.

2. GeoMeter SCOUT GM Spike BV6300 PRO (6/128 Gb)

  • Rugged smartphone BV6300, RAM: 6 GB, internal memory: 128 GB;
  • Geometer SCOUT software (installed);
  • GM Spike receiver with built-in battery;
  • Protective box.

RESOLUTION OF DISPUTED ISSUES ON THE AREA
With GeoMeter SCOUT mobile, you can easily prevent any controversial situations. Sometimes such questions arise when a technician is hired for the amount of work performed. The employer claims that the area of ​his field is 12 hectares, and you feel that this is not the case from fuel consumption and other materials. The GeoMeter device will help you in this situation. It is enough to go around of the field exactly along its perimeter, and you will immediately see a drawing of this field and its exact area. And using the site Agroprofile, you can print a field card with complete information. To obtain high-precision coordinates, you may need a set of external receivers.

DATA SECURITY AND CONVENIENCE OF WORKING WITH COLLEAGUES

GeoMeter SCOUT is a personalized device. Log in to your Agroprofile account and synchronize fields. Share notes and other data with colleagues in the same enterprise. Data exchange takes place using a secure protocol. No one but you can access your data. Your Agroprofile account is password protected. You can put the password on the GeoMeter SCOUT device one of the available options: pin code, facial recognition, graphic password.

OPERATION WITH PENETROMETER
GeoMeter SCOUT can be connected to additional devices the Bluetooth module and receive data from them. When working with the Digtal Penetrometer, soil density parameters for the measured points are added to the path points. The result is displayed on the GeoMeter SCOUT device in the form of a graph, and is also saved for report generation. During synchronization, measurement data are sent to the on-line office of the Agroprofile to preserve the complete history of the field study, as well as to receive extended reports.

TRANSFER DATA TO PCS AND CLOUD
The augmented capabilities of the online platform Agroprofile were specially developed taking into account the technologies of the GeoMeter SCOUT device. Direct synchronization of data between employees of the same company within the company profile. Store the database of your fields on all your devices and have secure access to them 24/7 using the Agroprofile system. You can use measured object files in any program with built-in file export capabilities. You can export data to the following formats: kml, utm, mgrs, txt, csv, datum user.

LARGE SCREEN FOR MAXIMUM CONVENIENCE
GeoMeter SCOUT is equipped with a modern screen with IPS technology and HD resolution of 720x1440 points. The increased brightness of the screen in 400 nits will allow you to perform work with great comfort even on a bright sunny day. GeoMeter SCOUT has scratch resistant Gorilla Glass. Using GeoMeter to measure field area is easy and convenient!

FIELD DIVISION
The SCOUT GeoMeter has an intuitive menu, and you can divide the field into several sections in one of several ways. Use the SCOUT GeoMeter with maximum benefit. Do you need to measure the field in several parts? To do this, just touch in the right place on the screen. And the area will be divided according to the parameters you need. You determine how to divide the field.

ALL FUNCTIONS IN ONE CLICK AWAY
The new GeoMeter SCOUT software is both simple and functional. The new program logic will allow you to perform many functions and calculations in just one click. Whether it is measuring the area, dividing the area into several parts, cutting out unproductive areas - all this you will get with maximum convenience. New features: field marking, selection of the most convenient field processing trajectory, embedding circles in semi-automatic mode for the construction of circular irrigation systems, working in RTK mode, displaying measurements on Google maps in real time.

Агропрофіль - система онлайн планування для сільського господарства

  • Bluetooth Bluetooth, version 4.2
  • RAM 16 GB
  • Battery 3500 mAh
  • Display 5.7 inches
  • Body IP68 Standard Protection
  • GPS receiver built-in, GPS/GLONASS
  • Memory card support up to 32 GB
  • Weight in package 0.56 kg
  • GPS receiver type GNSS GM Spike
  • PC Software Agroprofile, Google Earth (all free)
  • Sim card Yes
  • Camera built-in triple (photo, video)
  • Support for 2G/3G/4G Yes
