GNSS receiver GM SPIKE

Brand: geometer
Article: GMSP1
In stock
12 870 грн
Shipping methods

Airmail with tracking

Other transport services

Express shipping


Payment methods


Bank account payment

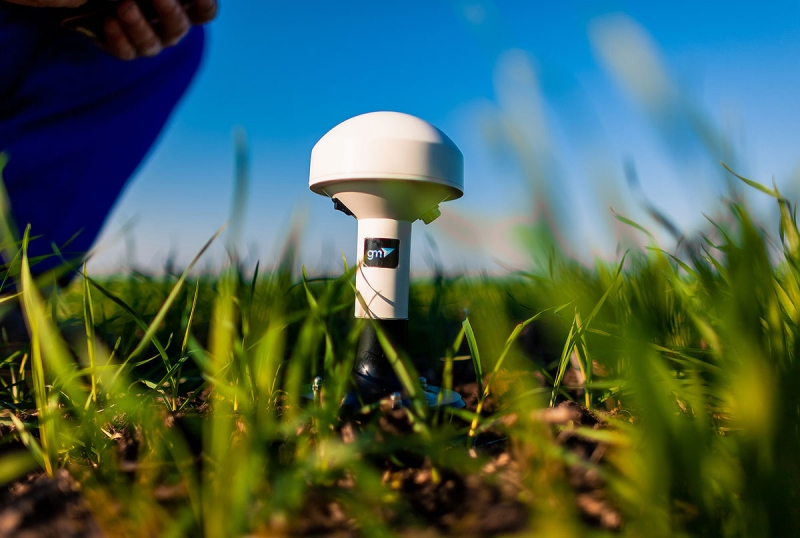

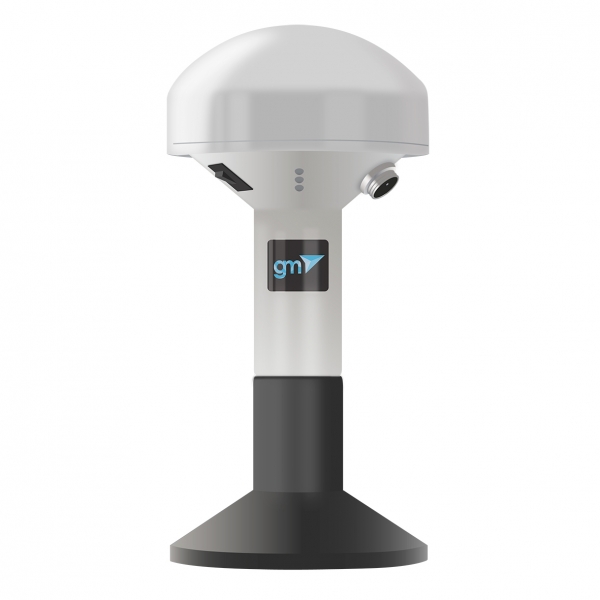

GNSS receiver GM Spike is an external receiver with a Bluetooth module, designed to improve the sensitivity and quality of the GPS signal and improve geo-positioning accuracy.

Connection is via Bluetooth protocol. The distance from device is up to 5 meters. It has a built-in Li-ion battery, which will allow you to work autonomously for up to 23 hours.

It is possible to attach the GM Spike receiver to the roof of the car using neodymium magnet.

The GM Spike receiver is used in agriculture to improve accuracy, road construction, navigation survey, sea surveying, and can also be used in other industries, according to the conditions of use. Recommended for use as external antenna with geometer SCOUT area measuring device.

Official product page:


- high autonomy of operation (up to 23 hours)
- works without wires
- Connect to any device using Bluetooth
- high quality of equipment
- ease of use
- reliability and durability of operation
- high quality of signal reception
- stable signal quality (recommended for use in places with complex landscapes and interference, such as power lines, plantations and large-scale areas)
- cost-effectiveness (operation in a free signal format)



  • Bluetooth Yes, version 4.2
  • GPS Single frequency, L1
  • Diameter 110 mm
  • Body Standard IP67 protection (dust and moisture protection)
  • Frequency 1 Hz, 2 Hz, 4 Hz, 5 Hz, 10 Hz
  • Mount neodymium magnets
  • Number of channels 56 channels
  • Weight 0.45 kg
  • Height 180 mm
  • Battery Li-ion, up to 10 hours
  • Working temperature -40 ° C to + 80 ° C
  • Cold Start 29 sec
  • Connector type USB
  • Warm Start 5 sec
  • Fast startup 1 sec
