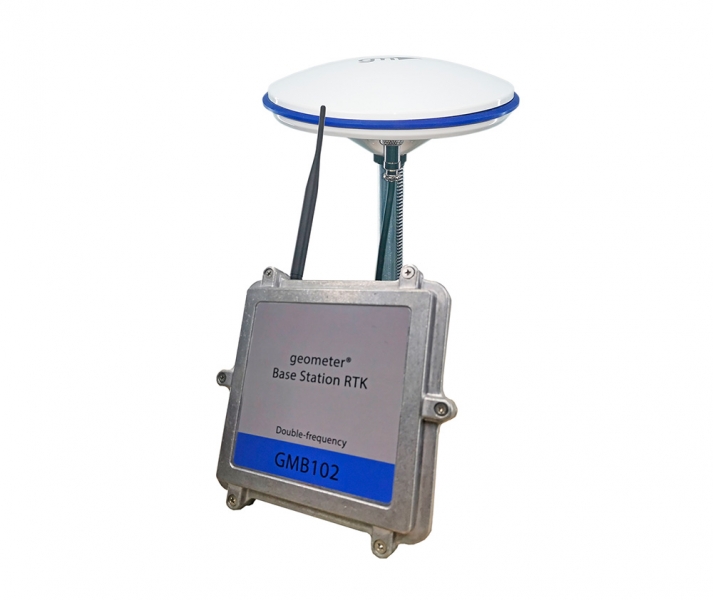

GNSS Base Station RTK

RTK base station based on SMART L1/L2 dual-frequency GNSS receiver. Can be used as mobile base station as well as stationary base station to create a GNSS RTK network.

The base station can be used as a receiver and transmitter that broadcasts satellite corrections to any RTK receivers. The presence of two frequencies L1 and L2 provides a high level of accuracy and initialization time - the time required for the receiver to obtain a solution when operating in RTK mode. This will give you the opportunity to fully concentrate on your work, because you can always be sure of the reliability of the equipment.

The base station can be installed as a static station, with entered coordinates of the installation point, and can also be used as a mobile base station with automatic calibration. It has a built-in battery for autonomous or backup power and can work up to 30 hours from batteries at a temperature of +22 degrees.

The base station can be combined into an RTK network with the broadcast of a correction signal with a radius of 50 km or more, with the creation of a NEAREST network solution. The positioning accuracy with a network solution is considered to be about 2.5 cm. If you work with a direct connection to the base station, the error changes at the rate of 1 mm per 1 km distance from the base station of the rover receiver.

An unlimited number of rovers can be connected to a GNSS RTK base station.

The base station receives satellite signals and broadcasts corrections from GPS, GLONASS, GALILEO, BEIDOU systems.

The base station is compatible with receivers from any manufacturer that can receive corrections using the RTCM v3 protocol: CLAAS, NovAtel, Trimble, Leica, Topcon, Javad, South, Stonex, Autopilots FJ Dynamics, Hemisphere, ComNav, South, Emlid...

The GNSS RTK Base Station is a professional surveying instrument with an ideal balance of reliability and cost. GNSS RTK base station transmits corrections via local Internet or SIM card.

Fast fixing with short initialization time, the highest degree of reliability and stability make the RTK GNSS base station a versatile tool for many applications where RTK accuracy is required.
