Agricultural guidance system geotrack lite

8.7" DISPLAY WITH GM SMART RECEIVER AND LICENSED GEOTRACK SOFTWARE

TABLET WITH PROFESSIONAL PRECISION FOR PARALLEL DRIVING

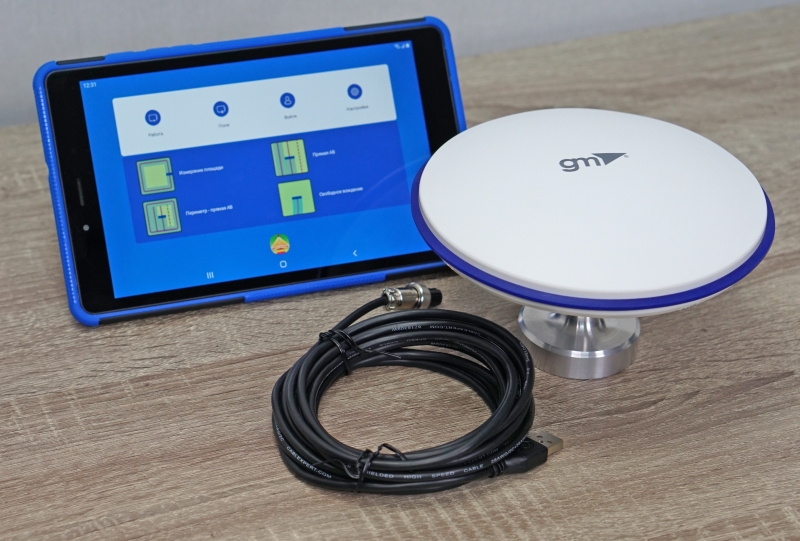

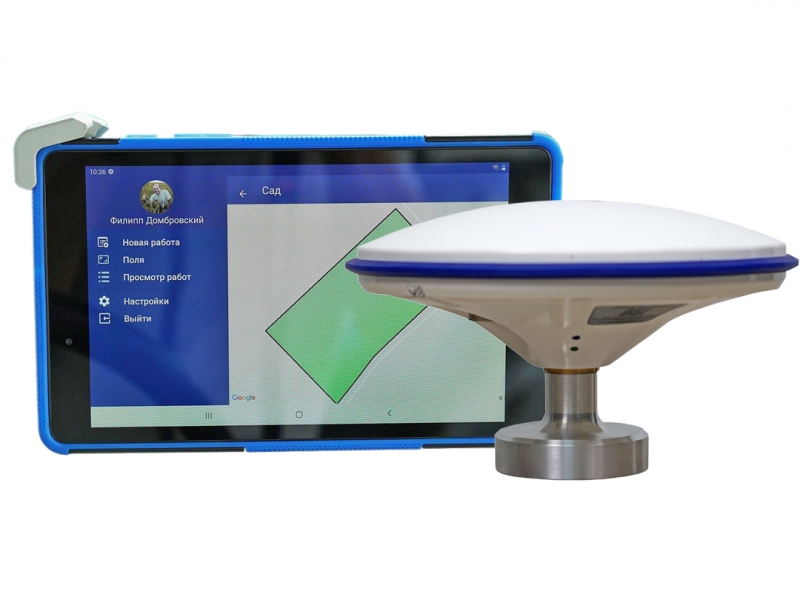

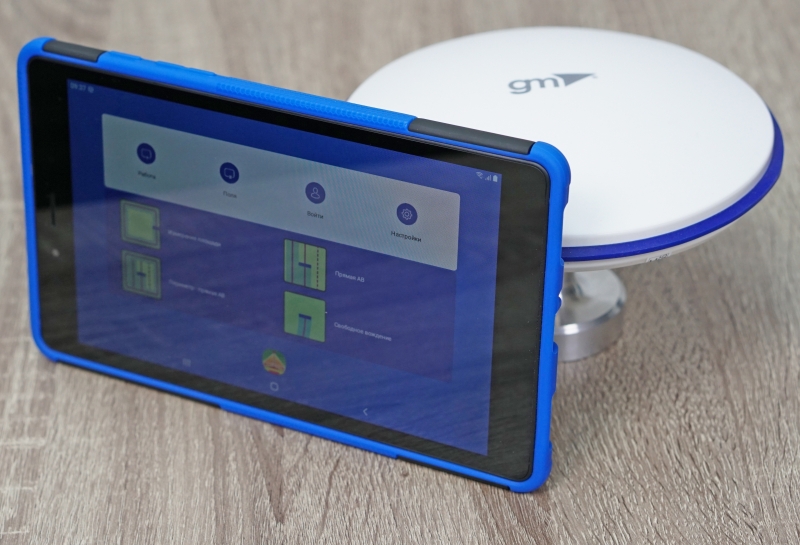

The kit is based on an 8-inch display and a GM SMART receiver. The GM SMART receiver is adapted to work with parallel driving systems and greatly facilitates the work with wide-width equipment. It has 335 channels to work with all available satellite systems: GPS, GLONASS, GALILEO, BEIDOU, SBAS. Provides parallel driving accuracy, at a level of 15 cm from row to row.

The system displays information on the screen for precise control of equipment, records the trajectory of the movement of equipment in the form of a track and accurately calculates the processed area. Thanks to the geotrack licensed software, it will be convenient and easy to work with this system. All control is carried out with one touch to the screen. If necessary, you can independently update your program to the latest version. It has an intuitive menu, so it does not require special training of the machine operator.

Synchronization of fields and works via Wi-Fi/3G/4G/LTE with the Agroprofile portal www.agroprofile.com will greatly facilitate the work with the device and provide the possibility of remote control by the head of the workers in the field.

The parallel driving kit is suitable for such work as sowing, spraying plants from weeds and pests, applying mineral and organic fertilizers. The combined use of the GM Spike receiver and the geotrack program makes it possible to accurately control agricultural machinery in the field in poor visibility conditions - at night, in fog, in very dusty conditions.

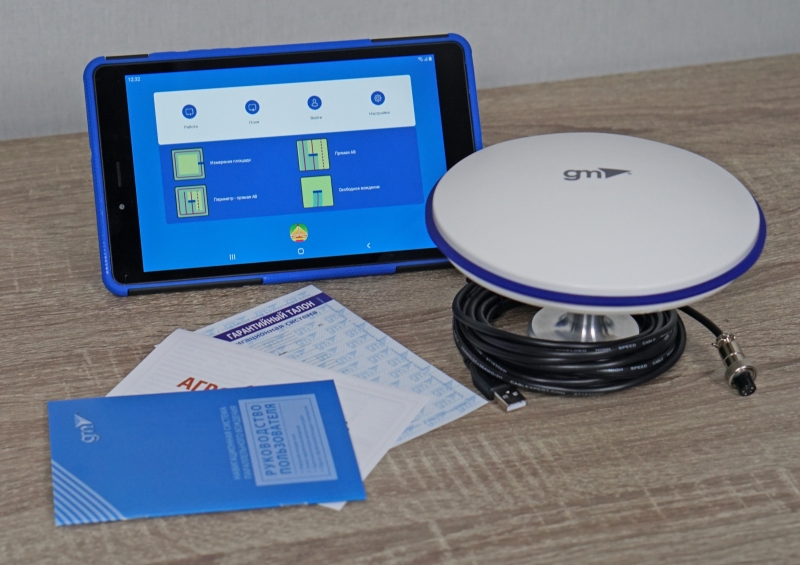

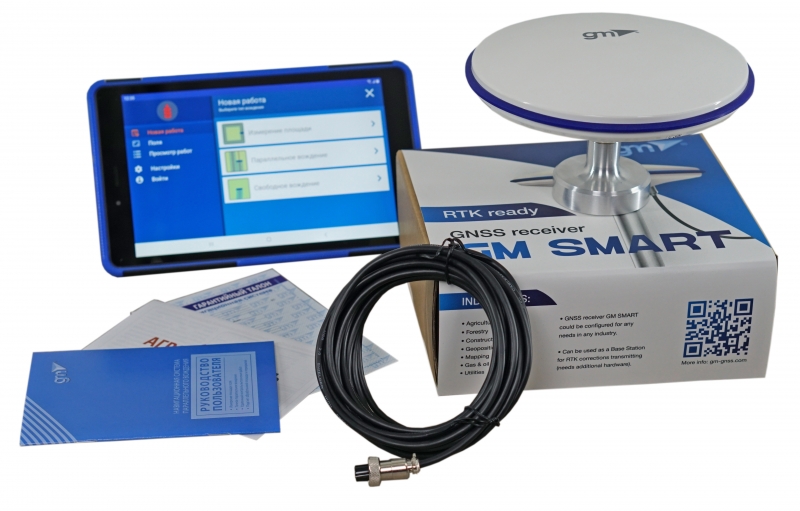

EQUIPMENT:

• Tablet 8.7 inch (8/128 Gb)
• GM SMART receiver
• Geotrack licensed program

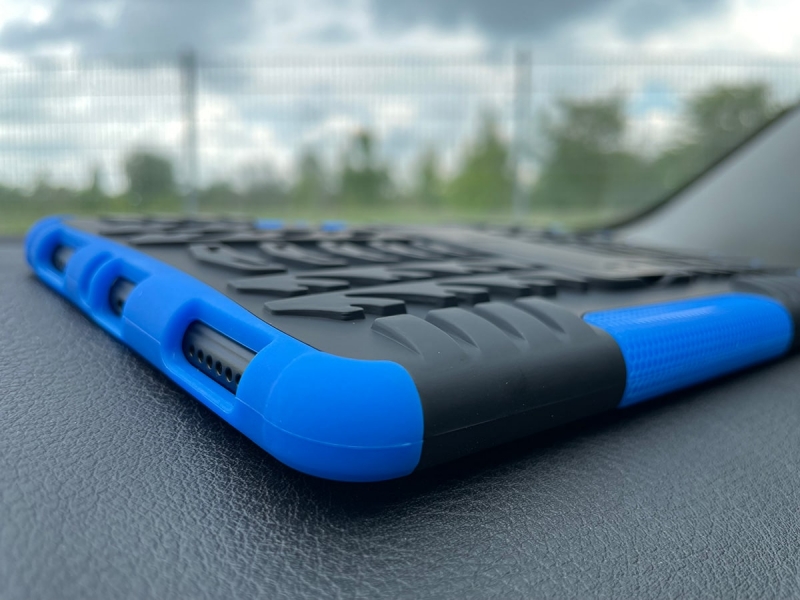

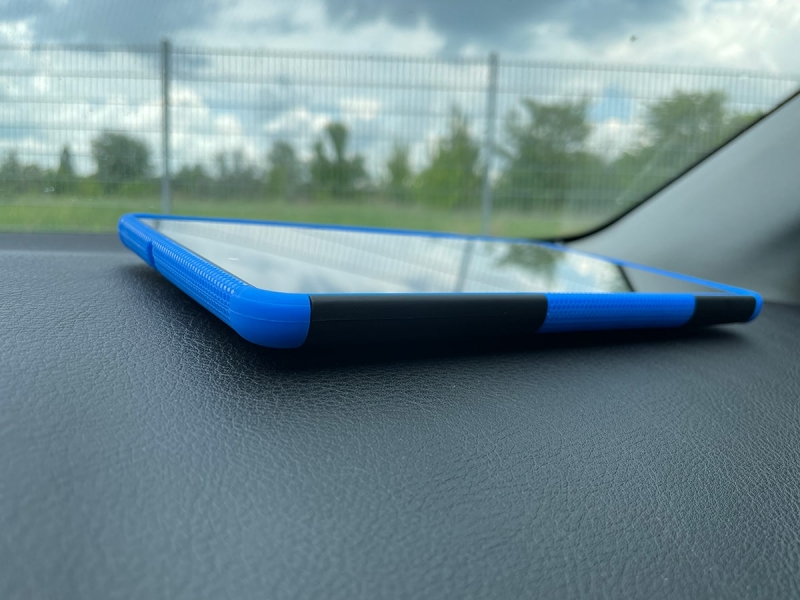

• Protective Case for Tablet

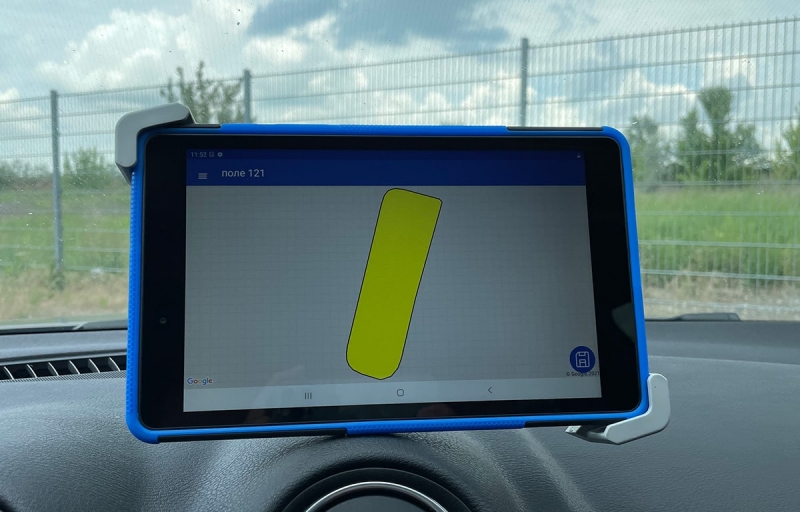

• Professional Tablet Mount
• RAM Mount
• 12V cigarette lighter adapter

SPECIFICATIONS:

• Display: 8.7 inches (22.1 cm)
• Housing: plastic
• GPS receiver: external SMART
• SMART receiver power - USB 5V (adapter included)
• Cable length 4 meters
• Parallel driving accuracy: basic, 15cm
• Memory card slot: micro SD
• Warranty for the tablet - from the store by check (from 6 months to 12 months, depending on the store)
• SMART receiver warranty - 12 months
• Technical support for geotrack software - unlimited

VIDEO DEMONSTRATION OF THE PROGRAM IN WORK:

FUNCTIONS:

• Accurate parallel driving
• Accurate area measurement
• Processing Saved Fields
• Counting of processed areas
• Determination of % overlap
• Switching off sprayer sections by overlap
• Shading of treated area
• Display the speed of motion
• Azimuth Display
• Five driving patterns
• Setting the working width (up to centimeters)
• Help directly in the field (connect to the device online)
• Save Field Map
• Save Work
• Specify type of work (sowing, spraying, etc.)
• Online synchronization with Agroprofile

NEW OPPORTUNITIES:

• More modes for parallel driving
• RTK Signal Support
• Synchronize fields and work on Wi-Fi with the online system Agroprofile
• Synchronization by 3G/4G/LTE with the online system Agroprofile
• Displaying Work on a Map
• Online work monitoring (update every 16 seconds, provided that mobile Internet is available) - 12 months free of charge, then (option) 60 y.e./year
• Work planning together with Agroprofile
• Division selection (for large enterprises and holdings)
• Execution of scheduled works from the list of works
• Performance with centimetre accuracy (+ connection to base station)
• Automatic disconnection of option sections (option)
• Auto-check connection (option)

OPERATING MODES:

• Measuring Field Area
• Measuring the area with offset
• Free mode
• Direct AB
• Curve AB
• Perimeter-Straight AB
• Perimeter-Curve AB

DURING MOVEMENT DISPLAY DATA:

• Processed Area
• Total length
• Speed of movement
• Number of satellites
• Quality of satellite signal (HDOP)
• Visual Control Tips
• Calculation of overlaps
• Visualization of overlaps in a different color
• Ratio: work done / work remaining
• Ratio: treated area/slab area

Driving mode 2D/3D
Day/Night Mode

• manual switching
• automatic switching at a given time

Work planning (can be used as desired):

In the personal account, the Agroprofile is assigned work, which on the specified day is automatically displayed in the section "View work":

• "New Work"
• "Section of works sent for recall"
• "Section of fully completed works".
